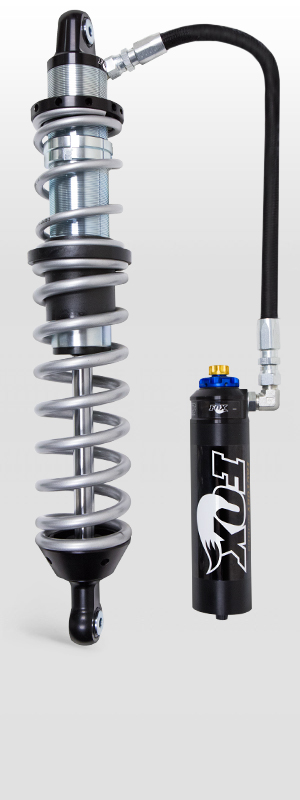

Fox Internal Bypass UTV Shocks

883-06-108 / 883-06-109

Fox Internal Bypass Features:

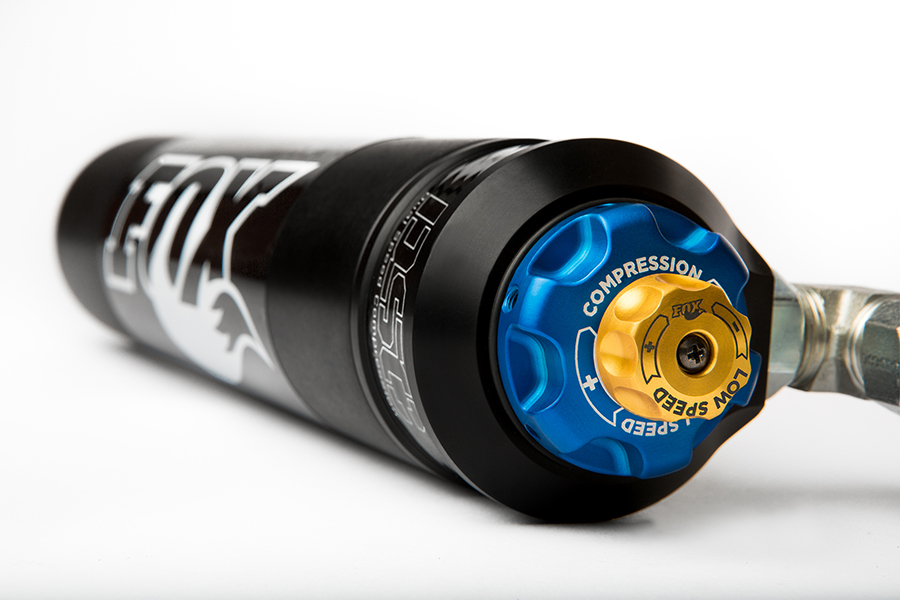

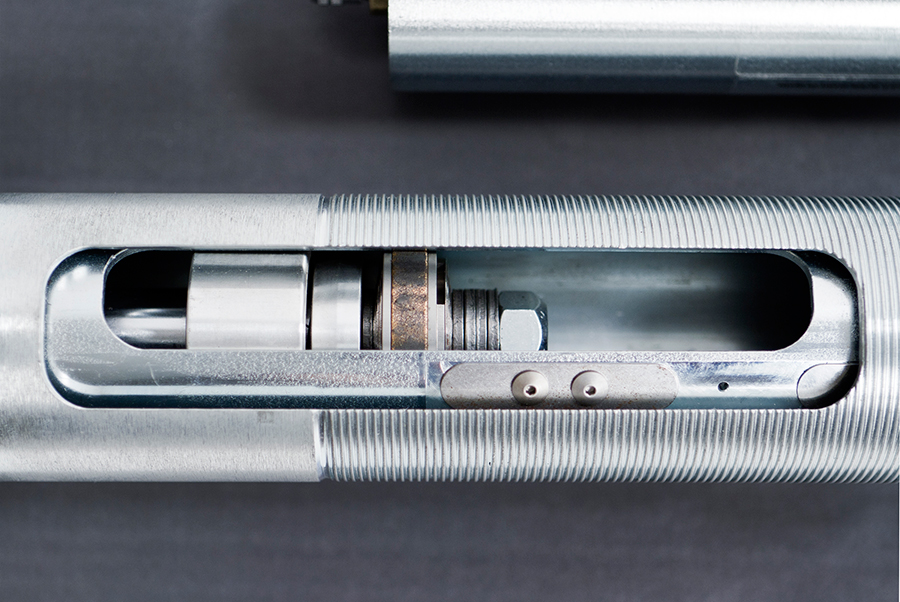

Fox's patented position-sensitive internal bypass technology contains inner passages that allow fluid to bypass the piston through regulated ports as it moves through the travel. The new shocks allow for a plush, predictable ride over normal off-road driving conditions and also have the ability to ramp up damping force for extreme use. These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum components and race-bred internal valving—designed to bolt right on to your stock UTV. The Dual Speed Compression (DSC) adjuster provides versatility and precise tuning. A simple twist of either of the adjuster knobs allows for twelve separate low-speed and ten high-speed compression levels. Increased cooling capability is achieved through the shock's 2.5-inch remote reservoir with a large -10 hose. The Internal Bypass shocks share many of the same components that their race-proven Trophy Truck shocks use including: stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil, and high-temp Viton® seals. Fox Internal Bypass shocks deliver race-proven, position-sensitive damping technology and performance in a hassle-free, bolt-on kit.

Part Numbers:
Polaris XP 1000 Internal Bypass Rear Podium 883-06-109
Polaris XP 1000 Internaly Bypass Front Podium 883-06-108
